-4%Hot
XPG CORE Reactor 750Watt 80 Plus Gold Certified - ATX- Fully Modular Power Supply (Box Packed)
Click to enlarge
XPG

XPG CORE Reactor 750Watt 80 Plus Gold Certified – ATX- Fully Modular Power Supply (Box Packed)

₨31,000 ₨29,900

XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.
  • DC to DC Converters
  • Continuous Power for 24/7 system operation
  • 120mm FDB Silent-Performance Fan
  • High Current +12V rail system compatibility
Brand

XPG

Warranty

1 – Year Warranty

Compare
Add to wishlist
Category: Power Supply
Share:
  • Description
  • Specifications
Description

Buy XPG CORE Reactor 750Watt 80 Plus Gold Certified – ATX- Fully Modular Power Supply (Box Packed) Price in Pakistan

The XPG CORE Reactor 750W is a powerful and reliable power supply that delivers stable and efficient performance for your gaming PC or workstation. It is 80 PLUS Gold certified, which means it can achieve up to 90% efficiency at 50% load, saving you energy and money. It also features a fully modular design that allows you to use only the cables you need, reducing clutter and improving airflow.

The XPG CORE Reactor 750W is built with high-quality components and advanced circuitry that protect your system from various hazards, such as overcurrent, overvoltage, undervoltage, overpower, short circuit, overtemperature, no-load operation, and surge and inrush current. It also has a silent 12cm fluid dynamic bearing fan that adjusts its speed according to the temperature and load, keeping your system cool and quiet.

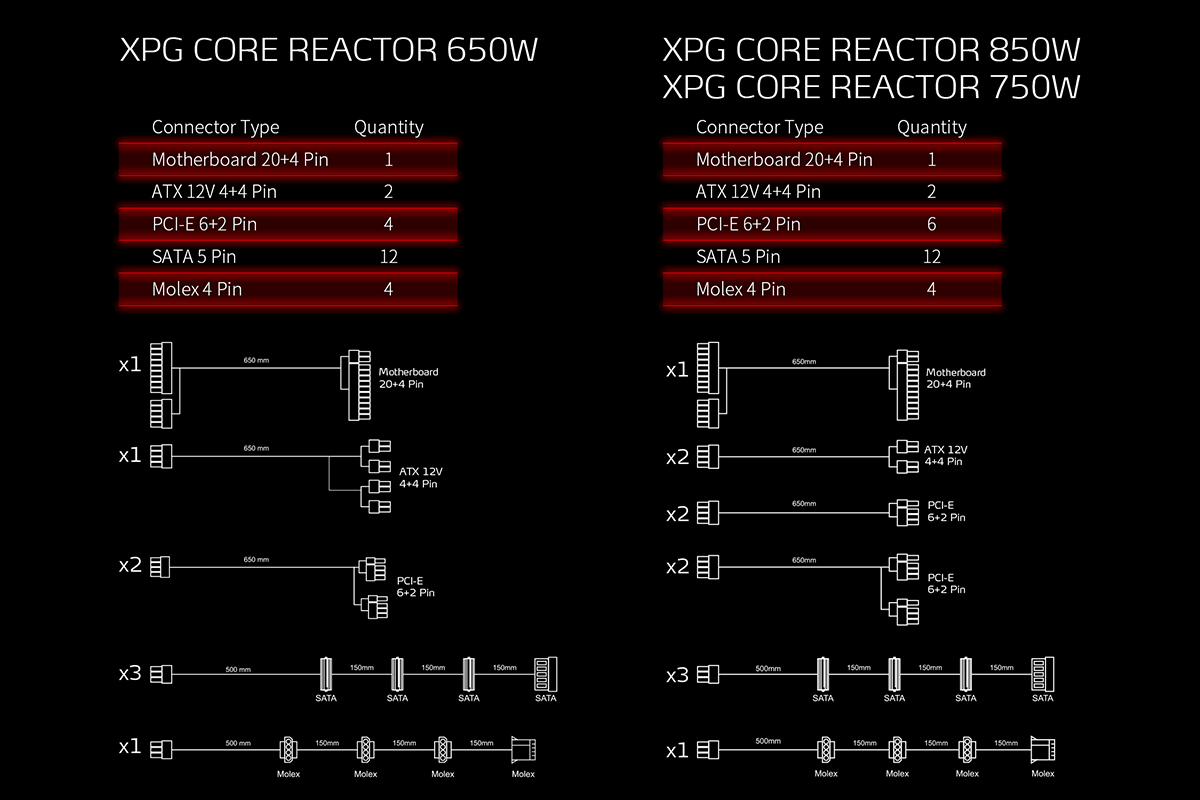

The XPG CORE Reactor 750W is compatible with Intel ATX 12V v2.52 standard and supports the latest CPU and GPU platforms. It comes with two EPS 8 (4+4) pin connectors, six PCI-E 6+2 pin connectors, four Molex 4 pin connectors, and twelve SATA connectors to power various components. It also has a compact size of 140 x 150 x 86mm that fits in most ATX cases.

XPG PYLON 650W
Power supply units are the core component of your beefed-up gaming rig. So, the whole PC is dependent on the PSU. Also, each and everything is connected to the mobo then to the PSU. Every power source of the components comes straight to the power supply unit. So, you can add as many components to the mobo without worrying about power interruptions, and the PSU will take care of them. XPG Pylon 650W is one of the best PSUs for all types of builds. Moreover, it has some of the best features. Let’s take a look at them:

80 Plus Bronze Certified with DC converter:

XPG Pylon is an 80 Plus Bronze Certified, which means it is capable of taking a full load of power easily. Also, it has the ErP 2014 Lot 3 Regulation. You can keep up your gaming rig always in operation because this PSU is designed to give 24/7 continuous power to the PC. In addition to this, it complies with Intel ATX Power Supply Design Guide’s sleep mode function. It ensures that the delivery of power remains consistent, efficient, and it is capable of supporting entry-level to high-end GPUs and CPUs.

120MM Fluid Dynamic Bearing (FDB) Fan:

Putting a power load on your PC? No worries, the 120MM FDB Fan will work flawlessly and efficiently. The fan will be at low speed until you put a 70% power load on it, and it will start at a quick speed with 700 RPM.

Japanese Capacitor at 105°C with Industrial-Level Protections:

Something that will keep your PSU durable and reliable is the main Japanese Capacitor inside the PSU. It ensures durability and offers the highest stability and reliability. Moreover, it has industrial-level protections that include OPP, UVP, OVP, SCP, OTP, NLO and SIP. In addition to this, it is designed for safety and efficiency.

CORE REACTOR

BUILD UP YOUR CORE

The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.

80 Plus Gold Certified

The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load. It comes in 650W, 750W, and 850W for different needs.

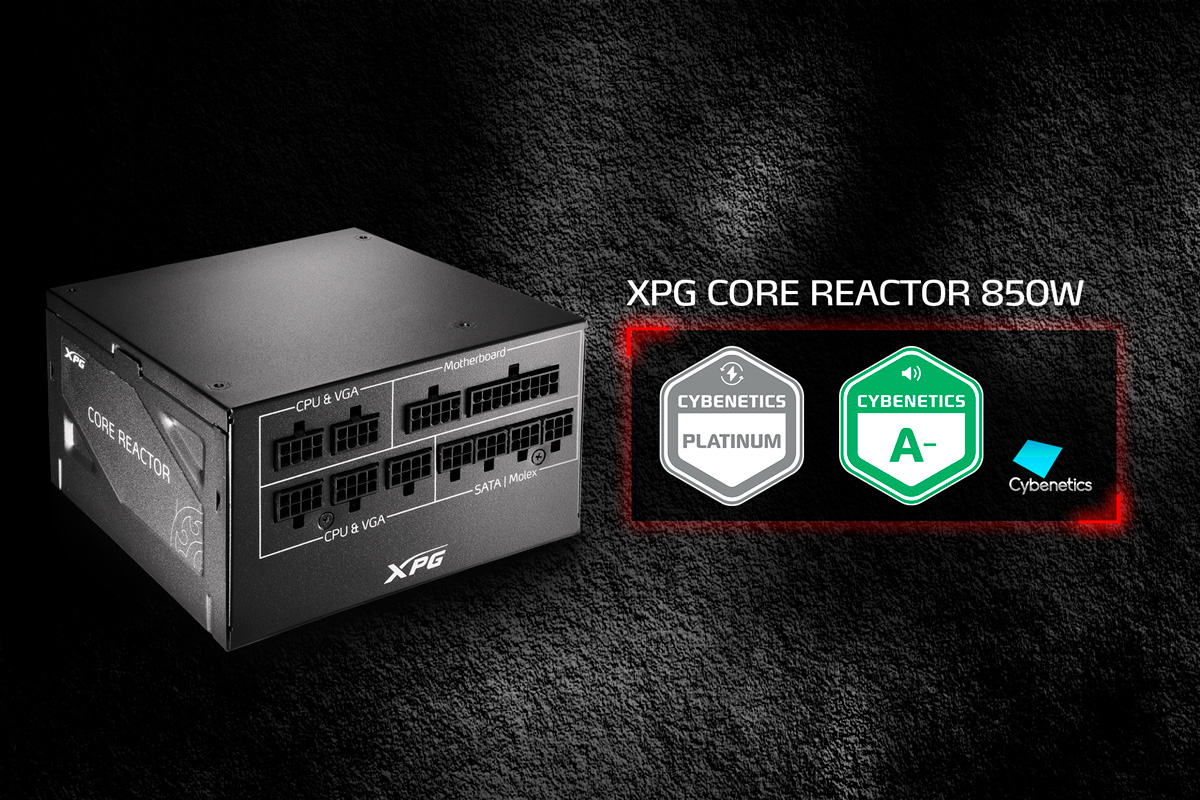

Cybenetics LAMBA / ETA Certified



XPG CORE REACTOR SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.

For more information on XPG CORE REACTOR’s Cybenetics certifications, please visit XPG CORE REACTOR SERIES PSU – Cybenetics Labs – PSU Efficiency & Noise Level Certifications.



Intelligent Fan-Curve

Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

Compact and Modular

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What’s more, its modular design reduces cable clutter and simplifies system building.

Premium Japanese Capacitators

Equipped with All 105°C Japanese capacitors, the XPG CORE REACTOR provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.

Industrial-Grade Protection

The XPG CORE REACTOR comes with an array of protection mechanisms for peace of mind and backed by a 10-year warranty.

Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge & Inrush Protection (SIP)

Specifications



Specifications

If you want to buy XPG CORE Reactor 750Watt 80 Plus Gold Certified PSU, you should check out our website for the best price in Karachi, Lahore, Multan, Rawalpindi, Islamabad & discount, and coupon code. You can order XPG CORE Reactor 750Watt 80 Plus Gold Certified Power Supply online and read our review and comparison. You will be amazed by the specs and performance of this Fully Modular Power Supply.

Specifications

PSU Specifications

Dimension (W x L x H)150 x 140 x 86mm
80 PLUS RatingGOLD
ATX VersionIntel 1.42
ProtectionsOCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
CertificationCB / TUV / cTUVus / CCC / CE / FCC(IC) / BSMI / RCM / KC / NOM
PFC0.99
Input Voltage100V-240V
Input Current10A-5A
Input Frequency47Hz-63Hz
Operating Temperature50℃
Fan Size12cm
Fan BearingFDB
Fan Speed2400
Noise Level @ 20%11.2dB(A)
Noise Level @ 50%850W : 11.3dB(A) / 750W : 11.3dB(A) / 650W : 11.2dB(A)
Noise Level @ 100%850W : 24.7dB(A) / 750W : 22.7dB(A) / 650W : 22.3dB(A)
MTBF100K hours at full load
ATX 24 Pin Connector1
EPS 8 (4+4) Pin Connector850W : 2 / 750W : 2 / 650W : 2
SATA Connector12
Peripheral 4 Pin Connector4
PCI-E 6+2 Pin Connector850W : 6 / 750W : 6 / 650W : 4
